Using custom fields

The fields that you see in your dimensions and metrics are created by the people maintaining your Lightdash project. But, you can create new custom dimensions or metrics for quick calculations and binning on the fly. On this page, we’ll explain what custom dimensions and metrics are and how to use them.

Custom metrics

Custom metrics are only saved in the chart they’re used in and will not be saved in the list of metrics available if you open the same Table to build a new chart. Metrics written to your dbt project (or YAML metrics) are reusable by everyone in your project and will always show up in the side bar of available metrics for a Table. We recommend writing back custom metrics that you’re using/creating frequently so they become reusable, governed and available for everyone else to build from.

To create a custom metric:

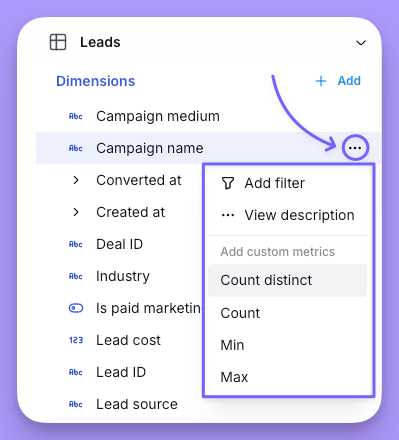

1. Click on the dimension’s three-dot options menu
2. Click on one of the options available (e.g. Count Distinct)
3. Confirm your changes

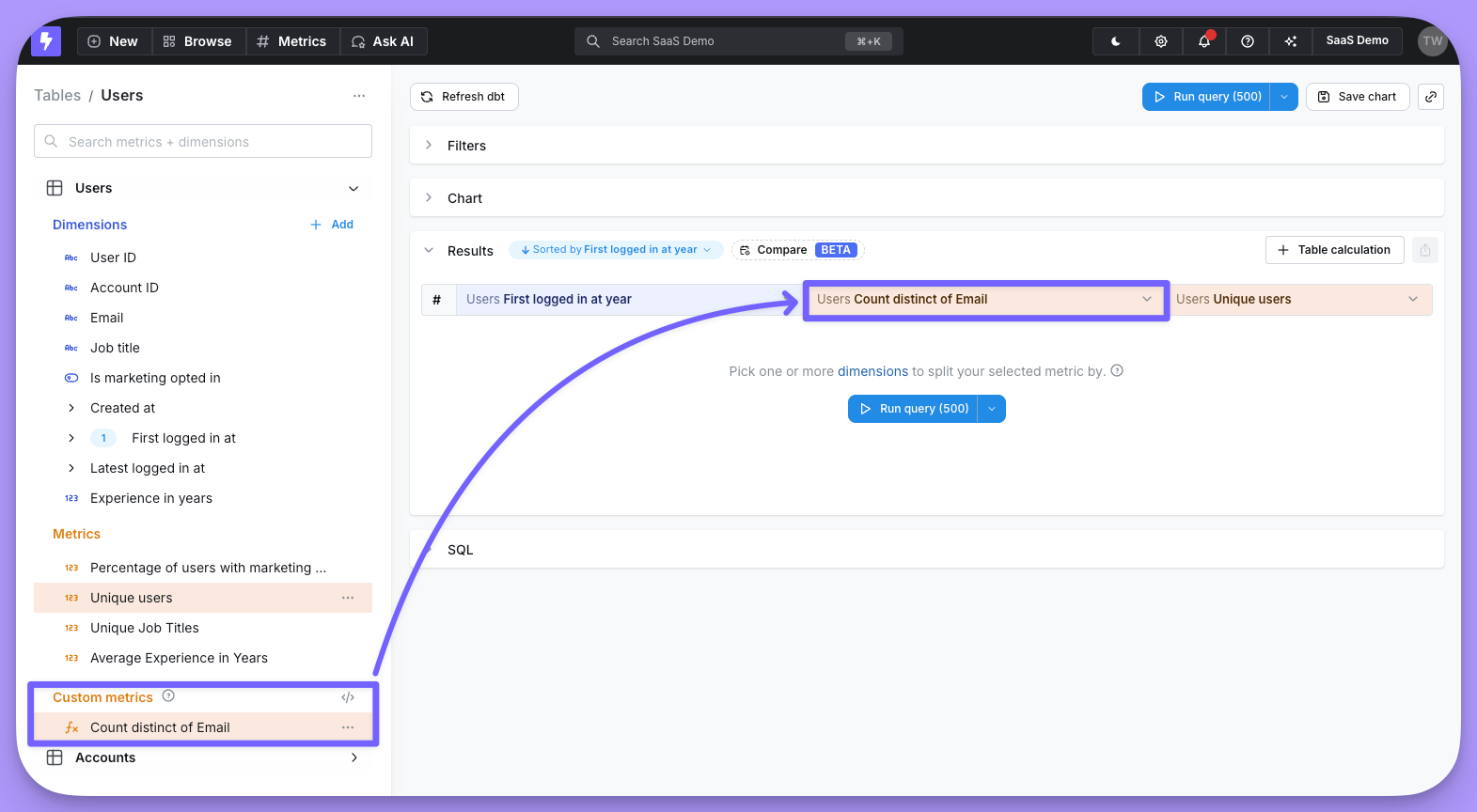

Then, your new metric will be added to your results table automatically and will appear in the custom metrics space in your sidebar.

If you want to delete the custom metric, you can just click on the three-dot options menu and hit Remove custom metric

Custom metric types

To learn more about the custom metric types, read the metrics reference documentation here. Only aggregate metric types are available as custom metrics.

Creating a custom metric from an existing metric

You can also start a custom metric from an existing YAML metric in the Explorer. This is useful when you want to reuse the base metric’s SQL and settings but tweak one thing — most commonly, adding a filter to narrow the aggregation (for example, cloning orders.total_revenue and filtering it to a single product category).

To create a custom metric from an existing metric:

1. In the field tree sidebar or in the results table’s column header menu, open the metric’s three-dot options menu.
2. Click Create custom metric.
3. In the modal, edit the label, filters, and formatting, then click Create.

The clone starts with the same values as the base metric, so it returns the same numbers until you change something. Specifically, the following are copied from the base metric and are editable in the modal:

• The metric’s sql, type (and percentile, where applicable).
• The base metric’s YAML filters, as editable filter rules.
• The base metric’s formatting (formatOptions, or legacy format / round / compact / separator, normalized to structured format options).

Clones of min / max metrics over date or timestamp columns inherit the base column’s date or timestamp format automatically, and the numeric Format section is hidden for them.

The custom metric modal also displays the source metric (read-only) at the top so you can see where the clone came from when you edit it later.

Which metrics can be cloned?

Only aggregate metric types (sum, count, count_distinct, min, max, average, median, percentile) can be cloned into a custom metric. Non-aggregate and derived metric types — including sum_distinct and average_distinct — do not show the Create custom metric action.

Defaults for filters you add

When you add a new filter rule inside the modal, it defaults to the base metric’s underlying column (its dimensionReference). This matters in explores that join tables with same-named columns (for example, an amount column on both orders and payments) — the filter targets the same table the base metric aggregates, rather than whichever amount column happens to appear first in the explore.

Re-syncing clones with the base metric

Custom metrics record their source metric internally, but they are not automatically re-synced when the base YAML metric changes. If the base metric is updated in dbt, edit the custom metric (or recreate it) to pick up the new definition.

Adding filters to your custom metric

You can add filters to limit the rows included in your metric aggregation. You can add filters when:

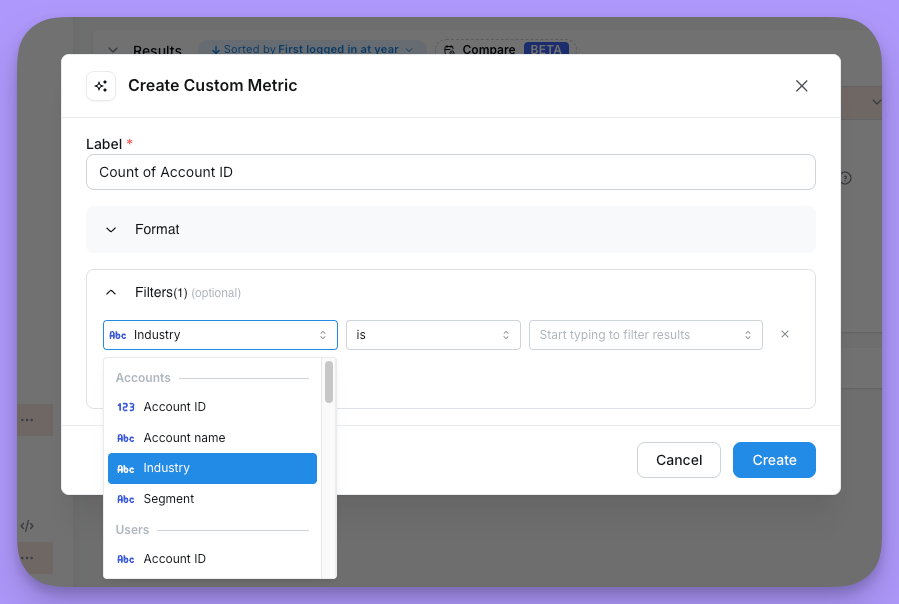

1. You create a custom metric:

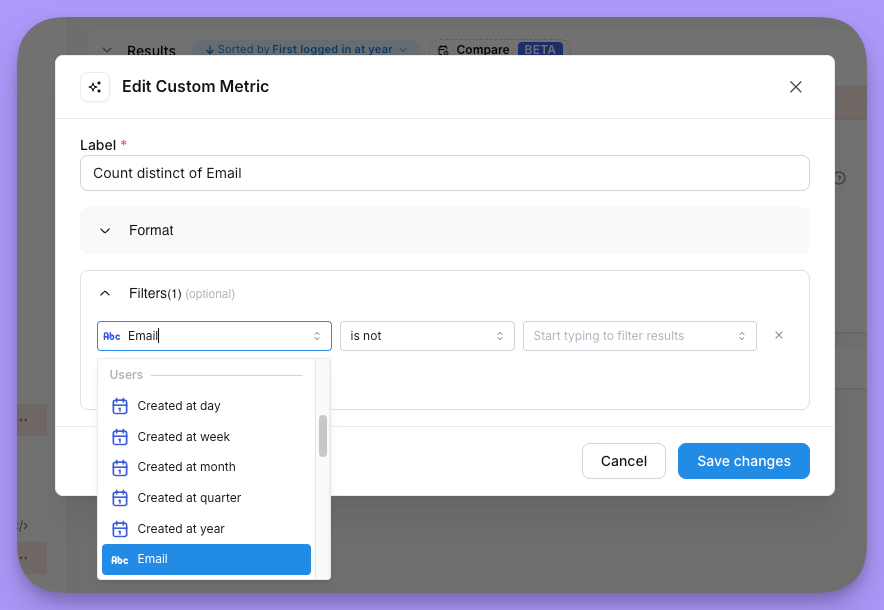

2. You edit an existing custom metric:

Custom dimensions

Dimensions are used to group results in your query, or filter values from your results.

Sometimes, a group or filter that you need hasn’t been added to your project, so you can use a custom dimension to create a grouping or filter on-the-fly.

These dimensions are not saved to the table permanently. They are only available in the saved chart or query that they were created in.

Using custom dimensions in table calculations

You can reference custom dimensions in your table calculations without needing to qualify them with a table name. Simply use the custom dimension name directly in your calculation formula, just as you would with any other dimension.

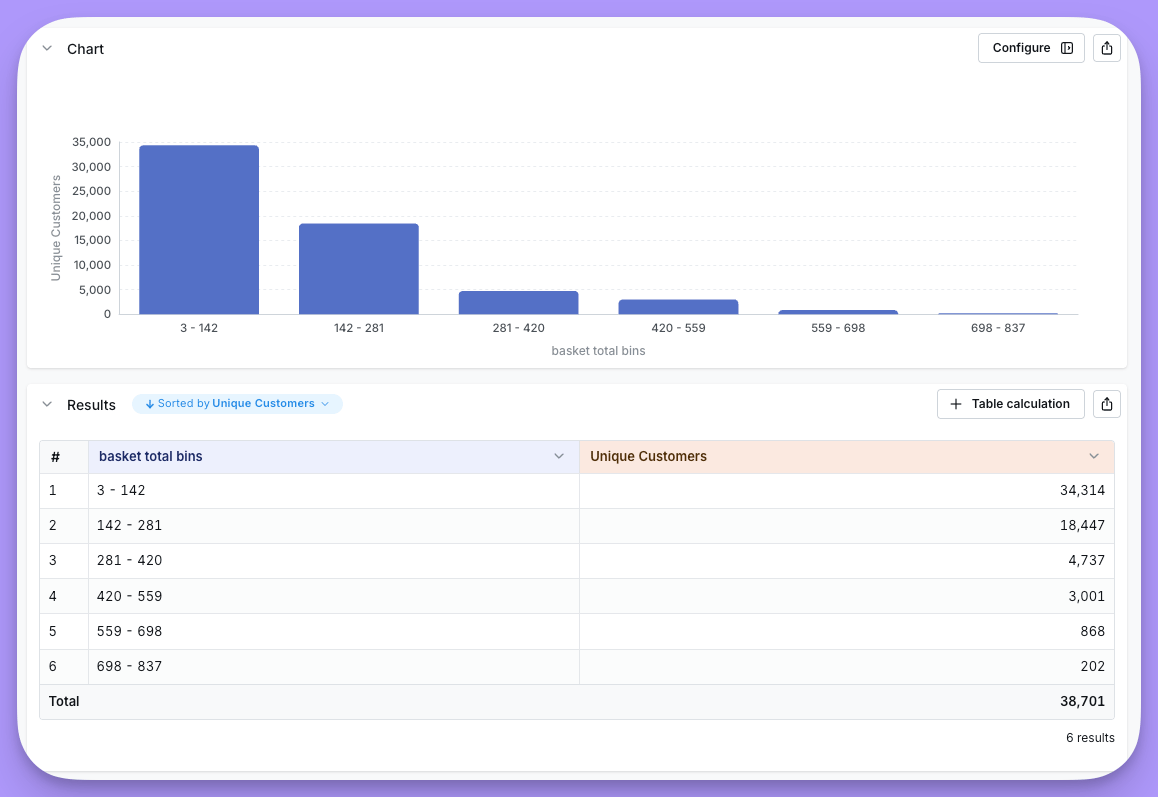

Bin

Bins are used to split out values of a numeric dimension into custom sets of ranges. Bins can only be used with dimensions that are numeric. Fixed bins (fixed number and fixed width) will update automatically if the min or max values of your dimension change.

To create a bin custom dimension, you just need to:

1. Click on a dimension’s three-dot options menu
2. Click on the bin option
3. Setup + create your dimension

Then, your new dimension will be added to your results table automatically and will appear in the custom dimensions space in your sidebar.

There are three ways that you can set up your bins:

1. Fixed number of bins

You pick the number of bins that you want to group your dimension into and Lightdash automatically defines the ranges for your bins. The ranges that Lightdash generates for the bins are equal to the range of the values in your dimension divided by the number of bins you selected.

2. Fixed width

You pick the width (a.k.a. ranges) for your bins and Lightdash automatically defines a set of bins with those widths. The number of bins that Lightdash generates is equal to the range of values in your dimension divided by the fixed width that you picked for your bins.

3. Custom range

You manually define the min and max values for each bin. The custom range option is the only binning option that will not automatically update if the min or max values of your dimension change (you would need to manually adjust your custom bins or some values could not be included in your bins).

Custom SQL

Custom SQL dimensions let you pull in new data directly from your database, which means they can sometimes be used to bypass access restrictions. Only users with admin or developer permissions can create custom SQL dimensions — or, on Enterprise plans, any user assigned a custom role that includes the Manage Custom Fields scope (Create and edit custom dimensions). Other users will not see authoring options for custom SQL dimensions, but can still use existing ones in their queries.

Security note:
Custom SQL dimensions can query any data from your warehouse, so they should only be created by trusted users (admins and developers). For most cases, it’s safer and more reusable to define dimensions in your dbt files. If you want to make a custom SQL dimension reusable, use the dbt write-back feature to move it into your dbt project.

When to use custom SQL dimensions

• Quickly create new groupings or calculations that aren’t yet available in your project.
• Reference other dimensions from the main table and joined tables in your explore.
• Prototype new logic before moving it to your dbt project.

When not to use custom SQL dimensions

• If you need the dimension to be reusable or governed for your whole team.
• If you want to ensure consistent access control and security.

Example: Categorizing order totals

In this example, let’s explore the orders table and create a custom dimension that categorizes my orders’ totals into three categories: low, medium, and high.

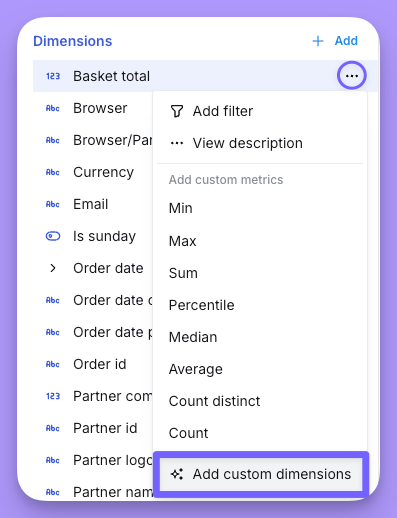

You can click on the button to add a custom dimension on the sidebar:

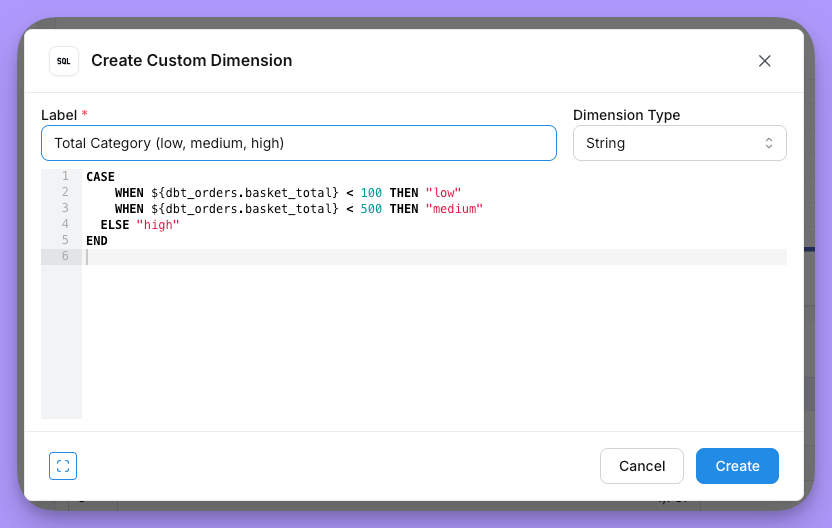

Then you can write your SQL query to create your custom dimension:

CASE
  WHEN ${orders.subtotal} < 100 THEN 'low'
  WHEN ${orders.subtotal}  < 500 THEN 'medium'
  ELSE 'high'
END

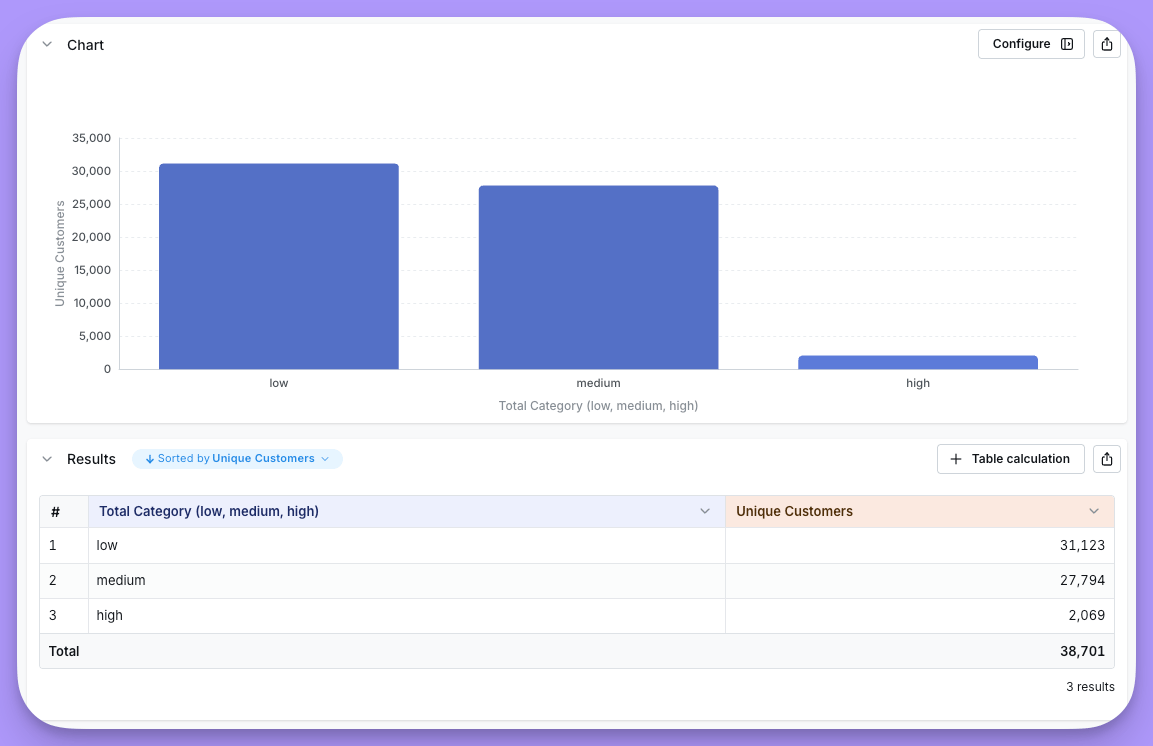

And after you run your query, you will see your new custom dimension categorising your orders’ totals:
